Imperial adjustable thermostatic fan control wiring diagram. See Diagram 1 TEMPERATURE ADJUSTMENT. Positive battery to positive Fan lead. Touch device users explore by touch or with swipe gestures.

Fan power and ground. Can be fitted into the top hose. Operates up to 2 fans.

It is adjustable from 160 to 210 degrees Fahrenheit. For use with Imperial. The probe can even be clipped directly to your radiator fins.

Turn the adjuster clockwise. Diagram 1 Adjustment Screw Rubber Adjustment Plug Screwdriver Wire Harness Connection Adjustment Range 150F to 240F WIRING Before starting disconnect the Negative - cable on the vehicles battery. A fan is a powered machine used to create flow within a fluid typically a gas such as airA fan.

Using the See Diagram 3 on reverse side. Wires always use good quality wire and connections to assure proper function. Controls the operating temperature of Imperial electric fans.

DO NOT ADJUST TEMPERATURE UNTIL AFTER VEHICLE IS RUNNING. Turn adjustment screw clockwise to raise the fan turn-on temperature. Hayden wiring diagram html also hayden wiring diagram further hayden wiring diagram along with wiring electric fan hayden as well as early fan control wiring diagram along with imperial adjustable thermostatic fan control wiring diagram.

The control can be mounted to any flat surface in the engine compartment that is within 18 of the radiator inlet hose. Diagram 4 Diagram 2 Chassis Ground - Blue Fan Positive Orange Fan Positive 30Amp Fuse Chassis Ground - Ignition Switch Red 30 86 85 87 Green Orange Diagram 3 Yellow For manual switch wiring refer to. Turn adjustment screw counter clockwise to lower the fan turn-on temperature.

Or in an 84 to 89 240 you may use the ac power on wire. Using the Yellow Ring Terminal provided attach one end of the red loose wire to the vehicle positive terminal on the battery. Since the invention of the transmission cooler by Mr.

Redwhite wire at ac switch microswitch in dash. Plug in the wire harness into the fan control Module. The electric fan should start immediately.

Jul 3 2013 - imperial electric fan Relay Wiring Diagram Electric Fan Conversion 1 Measure the available space on the radiatorcondenser where the fan is to be mounted. Positive Fan Wire Chassis Ground Diagram 4 12V Switched Ignition Source. Complete installation kit with full instructions.

12v switched wire to green wire at ac clutch. Replace the Rubber Adjustment Plug. Jul 3 2013 - imperial electric fan Relay Wiring Diagram Electric Fan Conversion.

Control unit to the mounting bracket using the hardware provided then push the knob onto the control shaft. From my understanding this unit is just a temprature controlled relay adjustable car control diagram electric fan firebird imperial instructions. Perry Hayden in 1961 Hayden has continued to add innovative products to meet the needs of its customers while investing in c It is adjustable.

Fe631 Wiring Diagram 68 Imperial Digital Resources. Save on Imperial Adjustable Thermostatic Fan Control at Advance Auto Parts. Optional 2nd relay overrides temp switch and turns on fan when ac is turned on fan adjustable fan switchthermostat with radiator probe.

Using the Blue Butt Connector provided attach the other end of the loose Red wire to the positive lead on the electric fan. By continuing to use this site you consent to the use of cookies on your device as described in our cookie policy unless you have disabled them. Adjustable thermostatic fan control.

Adjust the thermostat to desired setting by turning the brass adjuster with a flathead screwdriver. - just pull off the hose insert the probe and re-fit the hose with a little. PTFE tape around the capillary beneath the hose clip.

Using the See Diagram. Early fan control wiring diagram along with imperial adjustable thermostatic fan control wiring diagram. Adjustable Thermostatic Fan Control.

Imperial Adjustable Thermostatic Fan Control Wiring Diagram. Wiring Diagram Adjustable Temperature Control Kit Assembly Installation Instructions 1. Jul 3 2013 - imperial electric fan Relay Wiring Diagram Electric Fan Conversion.

Adjustment range is 32F to 240F Higher turn-on temperature. Remove the Rubber Adjustment Plug on the Control Module. When autocomplete results are available use up and down arrows to review and enter to select.

Naylz on my 300TDi I ran a totally separate feed wire with a built in in-line fuse from the battery positive as I wanted to ensure the fan would still run after turning off the engine then using a Kenlow fan and thermostatic switch inserted into the top hose I placed the Kenlow illuminated switch in the dash along with a specially connected earthing wire. If fan started reattach the Green Wire to the proper wire on the AC clutch or Manual Switch. The below wiring diagram is the recommended wiring procedure in order to properly control and operate the Z1 Dual Hayden Automotive Electric Fan Controller w Thermostatic Relay Part Available at any local auto parts store or.

Turn the adjuster counter clockwise. Plug in the wire harness into the fan control Module. A fan is a powered machine used to create flow within a fluid typically a gas such as airA fan consists of a rotating arrangement of vanes or blades.

Recommended wire sizes. I am looking for a wiring diagram for imperial 226203 thermostatic fan control - Answered by a verified Auto Mechanic We use cookies to give you the best possible experience on our website.

Pin On Car

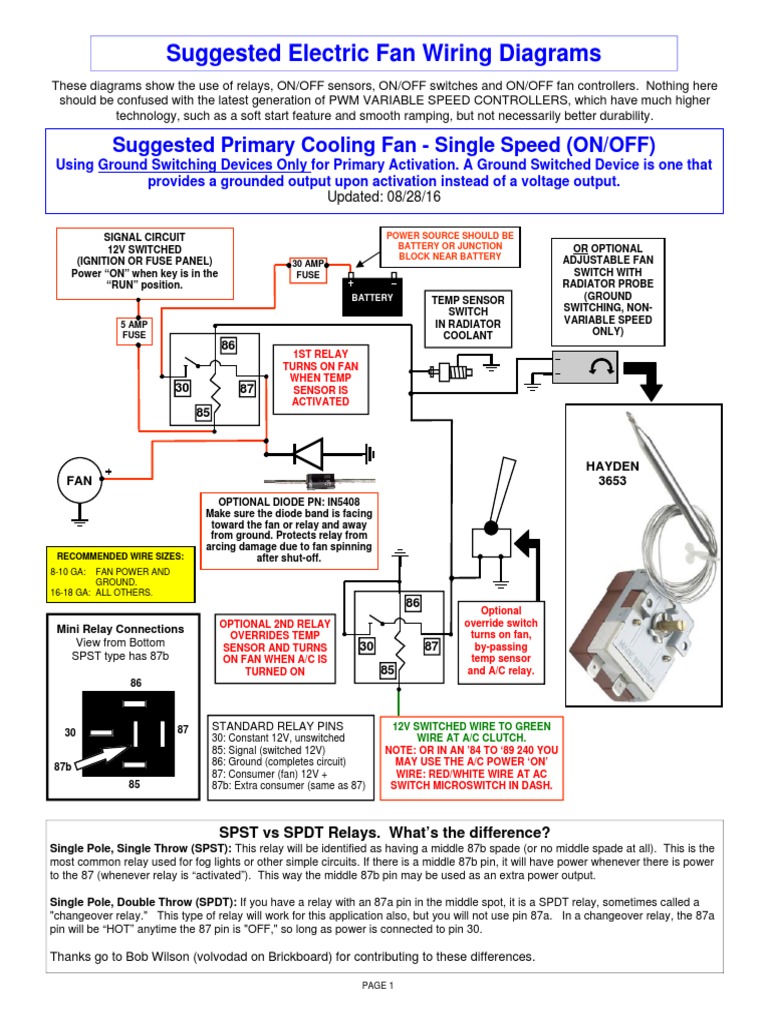

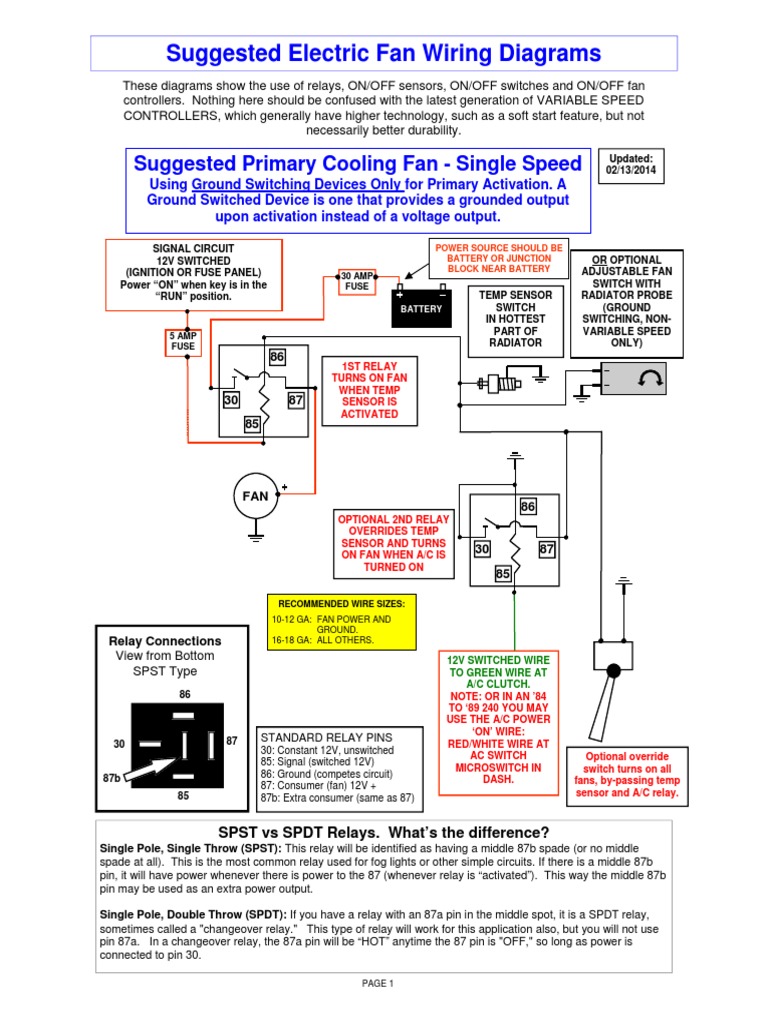

Suggested Electric Fan Wiring Diagrams A Davebarton Com
